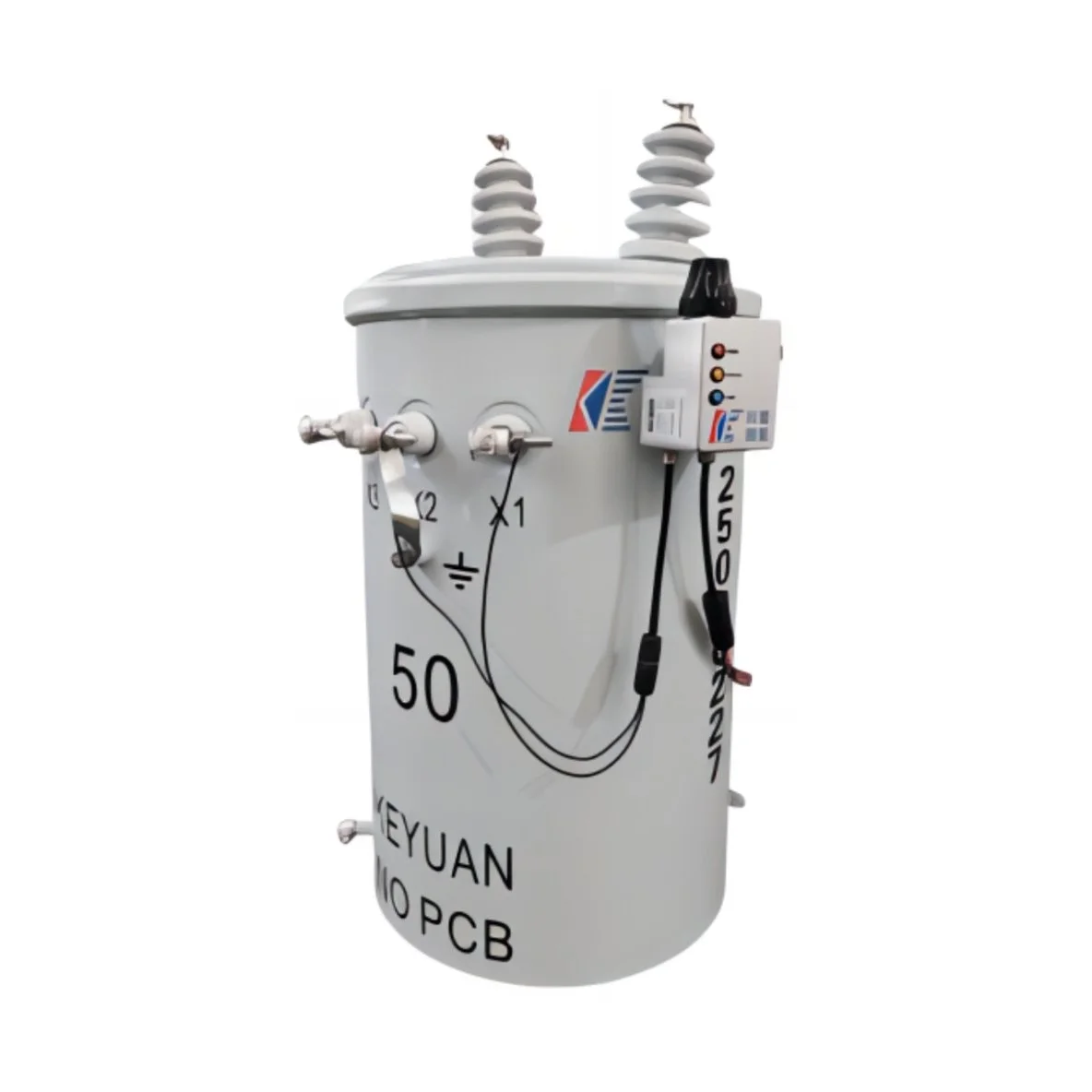

A large white electrical transformer with insulators and wiring attached, labeled "KEYUAN 10 P PCB" with various annotations and markings.

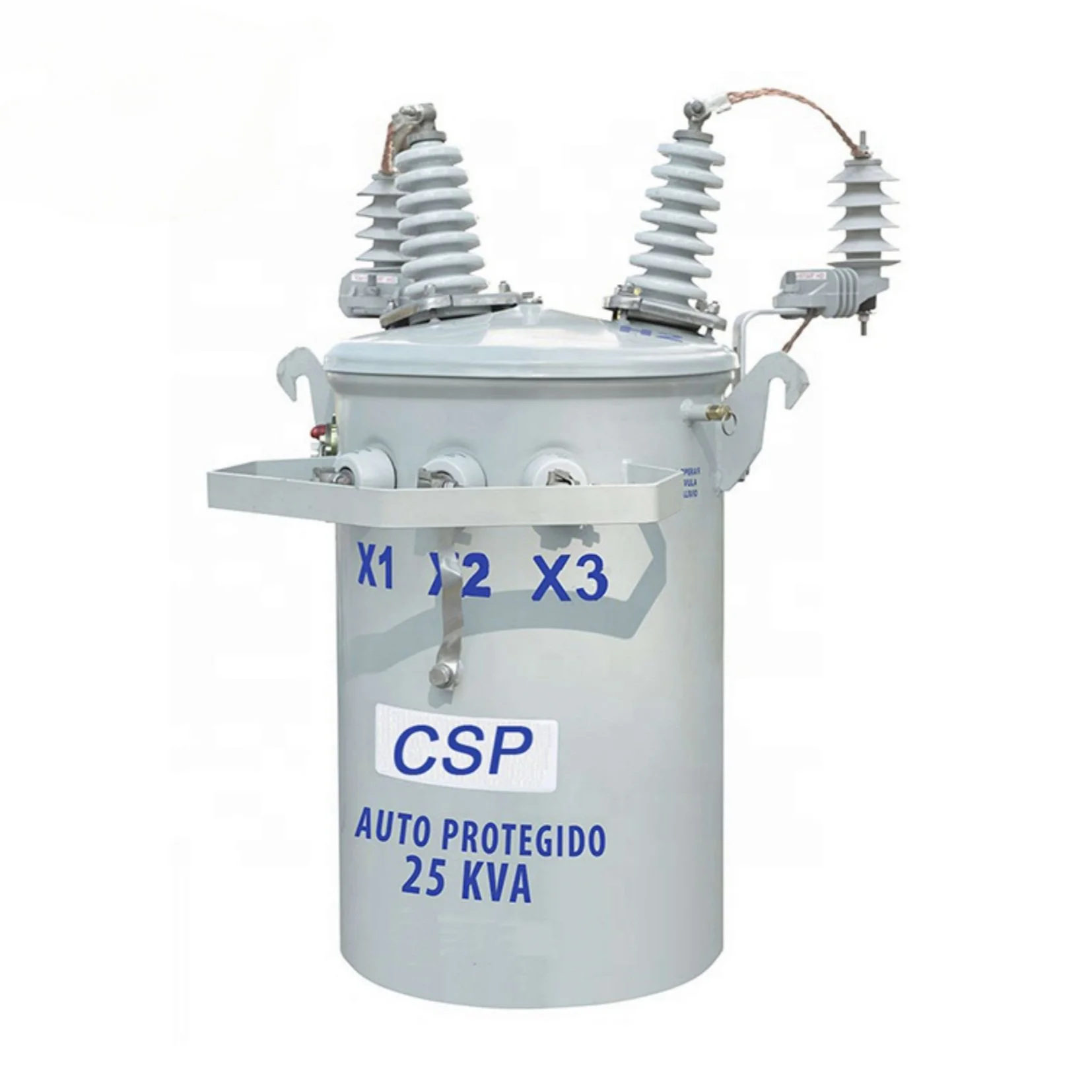

Electrical transformer with high voltage insulators attached, labeled X1, X2, and X3, with markings 'CSP AUTO PROTEGIDO 25 KVA' on a white background.
Industrial electrical or electrical isolator switch with insulators.
Industrial electrical transformer with cooling fins and bushings in a manufacturing facility.

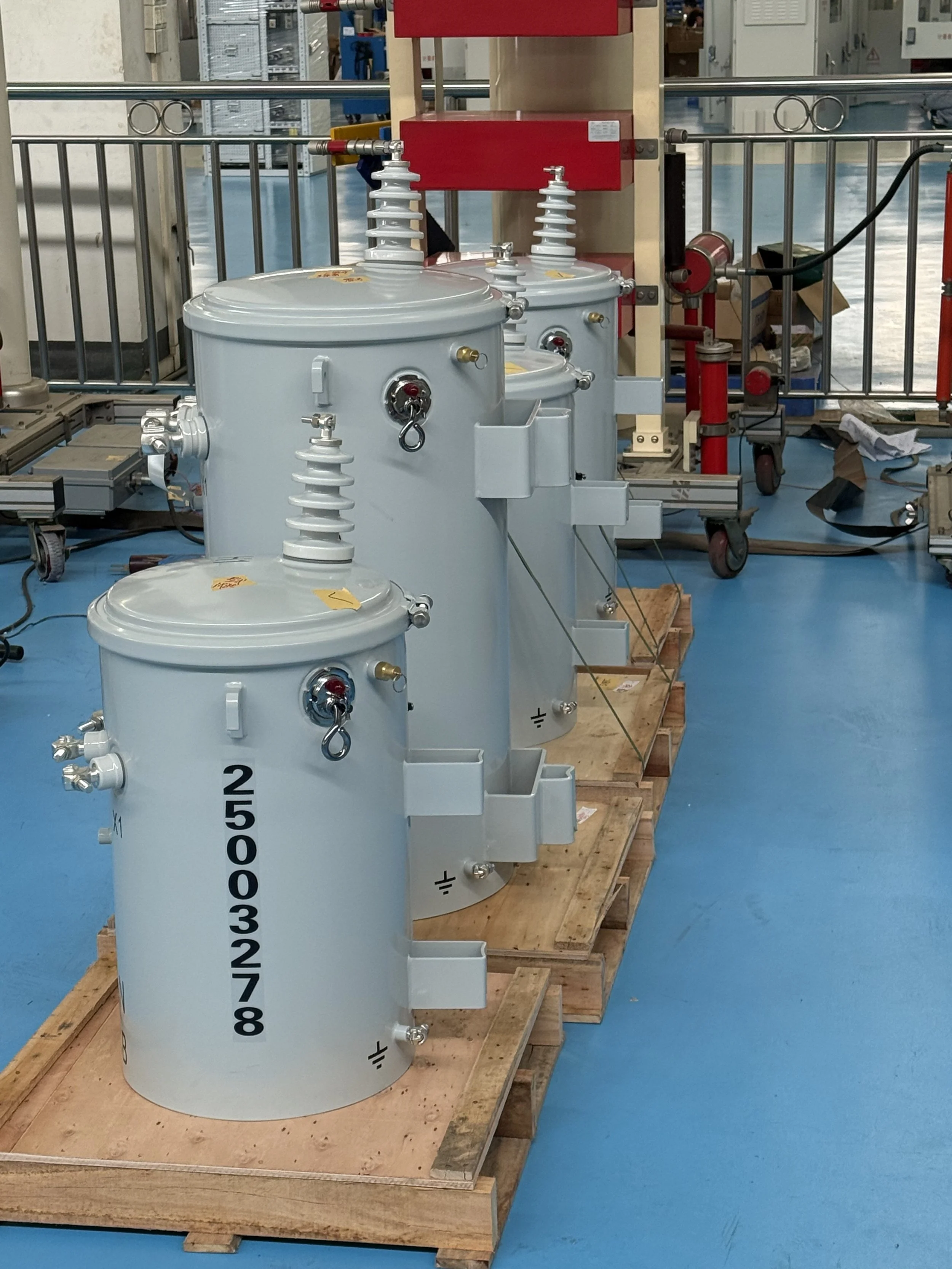

Three large electrical transformers with white bodies and black serial numbers, mounted on wooden pallets in a factory or warehouse.

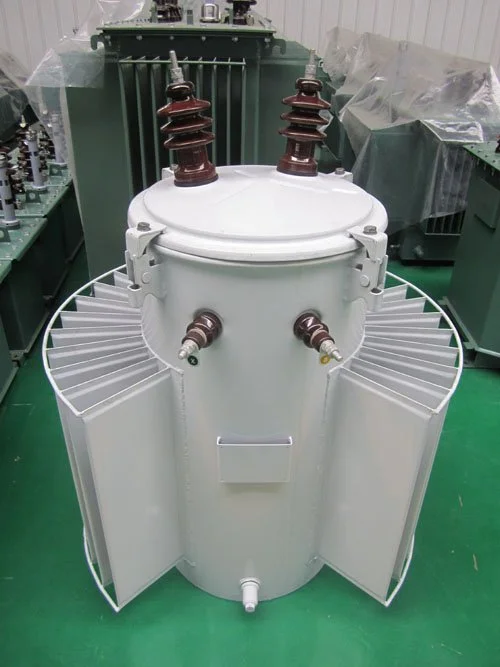

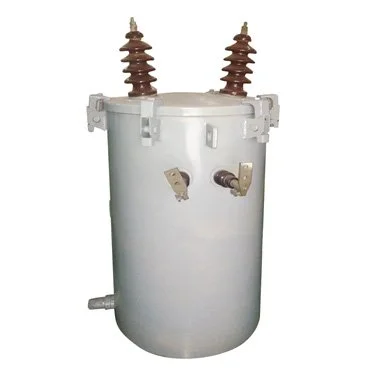

Pole mounted single phase transformer

Rating: 5, 10, 15, 25, 37.5, 50, 75, 100, 167, 250, 333kVA

Frequency: 50Hz or 60Hz

Primary voltage: 7.2kV - 19.9kV

Secondary voltage: 120/240V or 240/480V etc.

Standard: ANSI/IEEE, NEMA, DOE etc.

Optional type: Conventional type and CSP type

CSP components: Secondary circuit breaker. HV fuse, HV arrester, LV arrester

Optional Core: Silicon steel core or Amorphous core

Windings:Aluminum or Copper

Oil: FR3 or Mineral oil

The parameter above is typical design data for  reference. Custom design is available.
