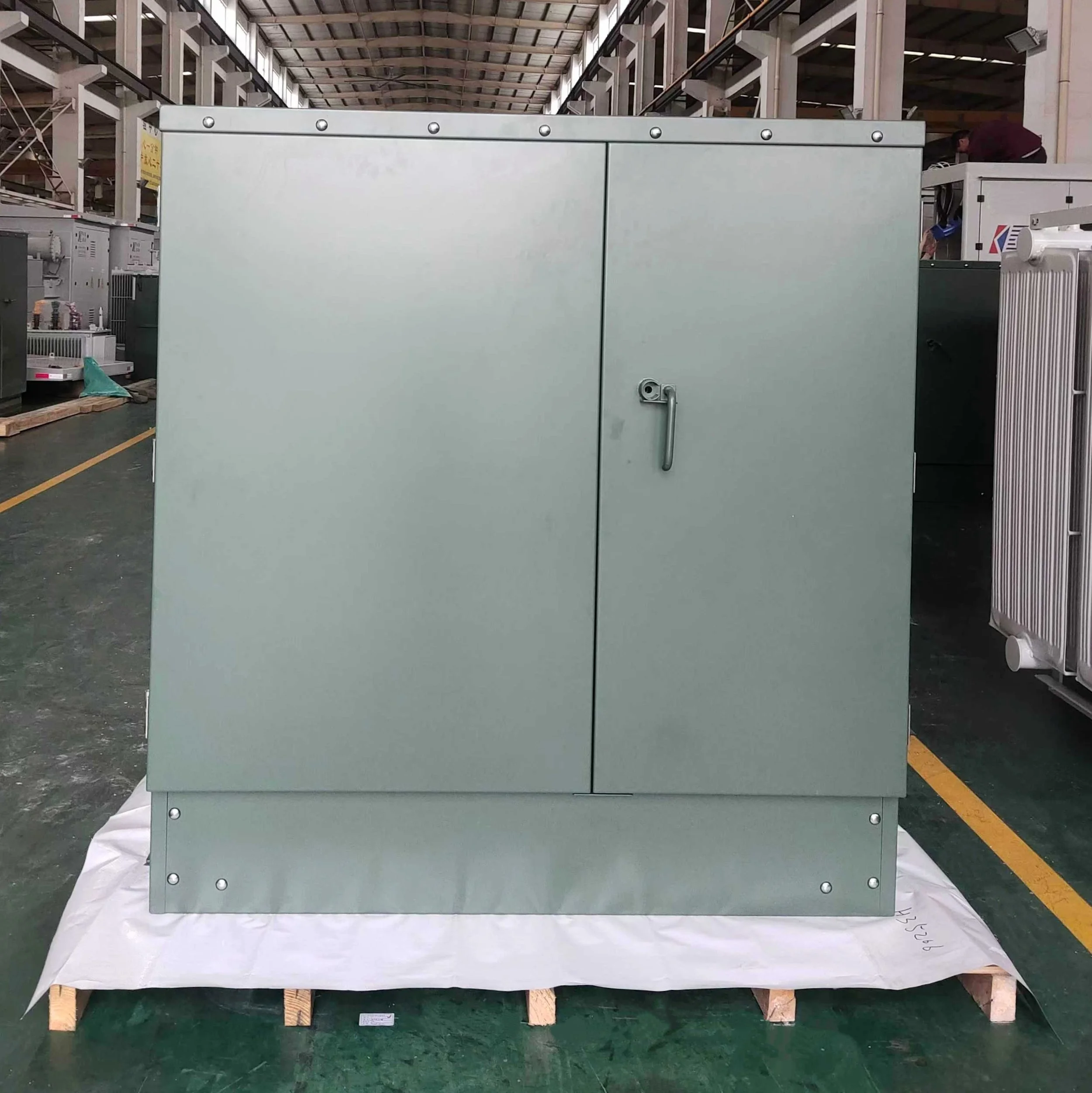

A large, gray, metal electrical cabinet with a handle on the door, situated on wooden pallets in an industrial warehouse.

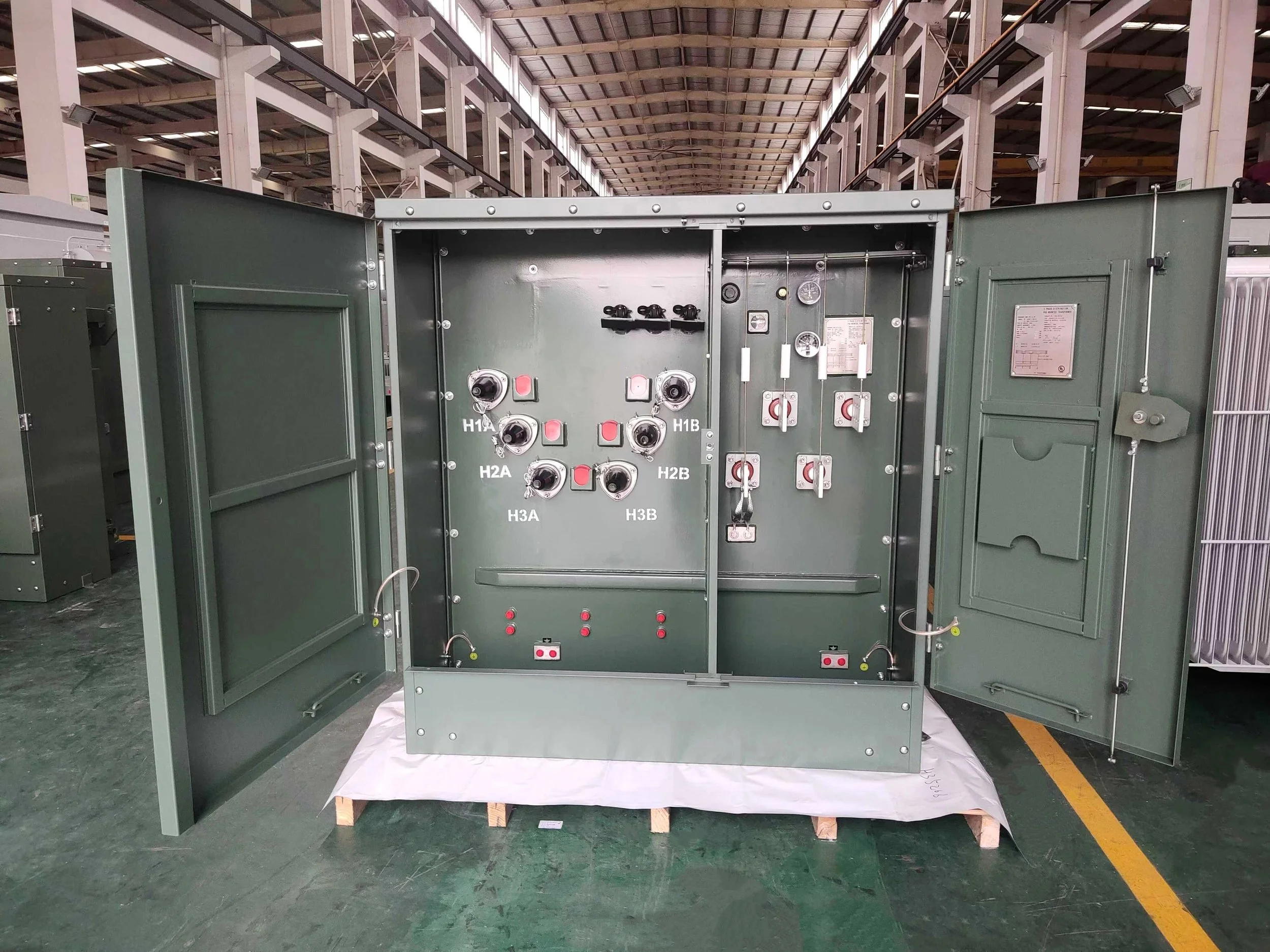

Open electrical utility transformer cabinet with various switches, gauges, and wiring inside, located in an industrial warehouse.

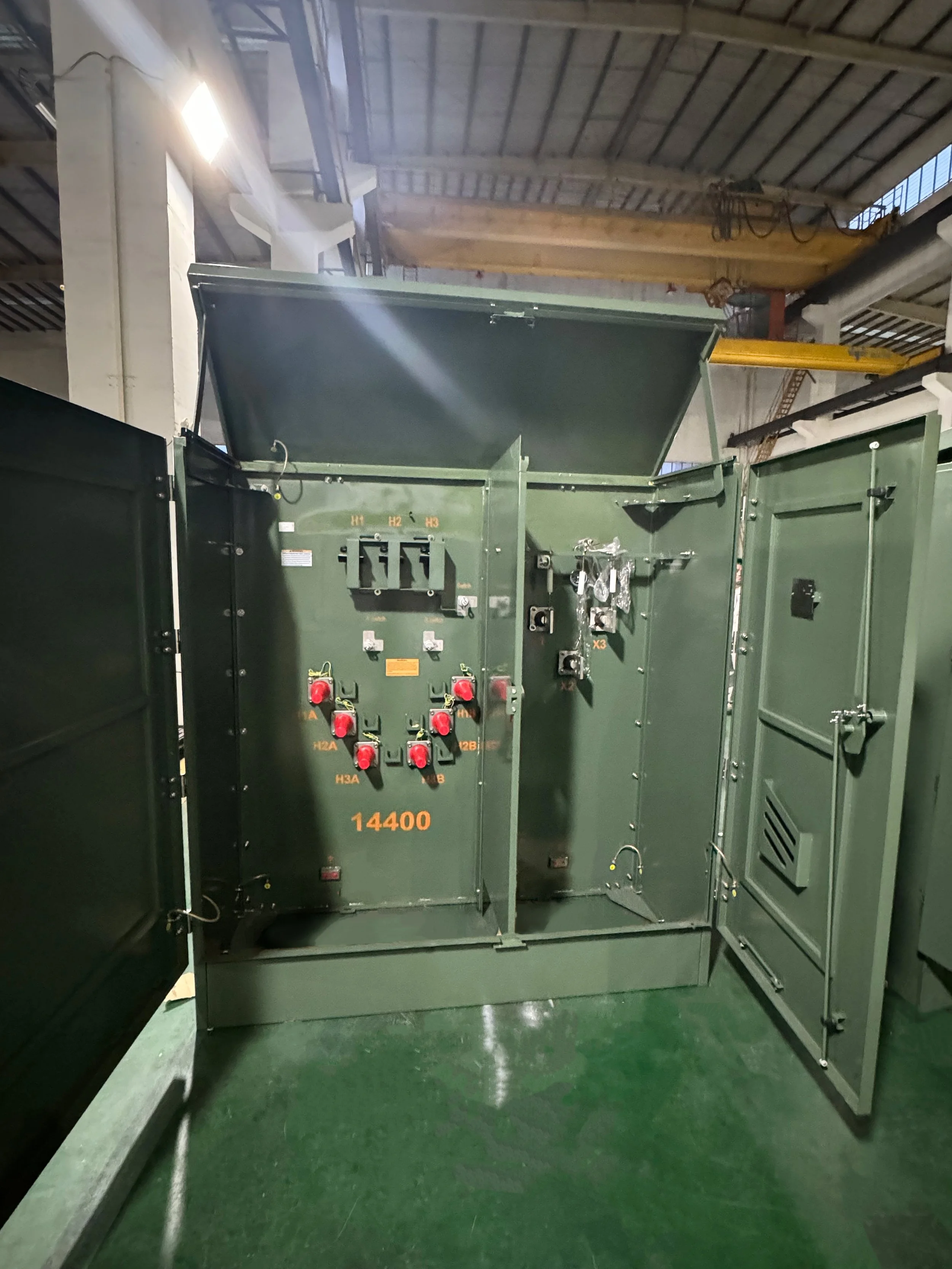

Military-grade electrical transformer or power distribution box with open doors, mounted on a green floor in an industrial setting, with various switches, circuit breakers, and wiring inside.

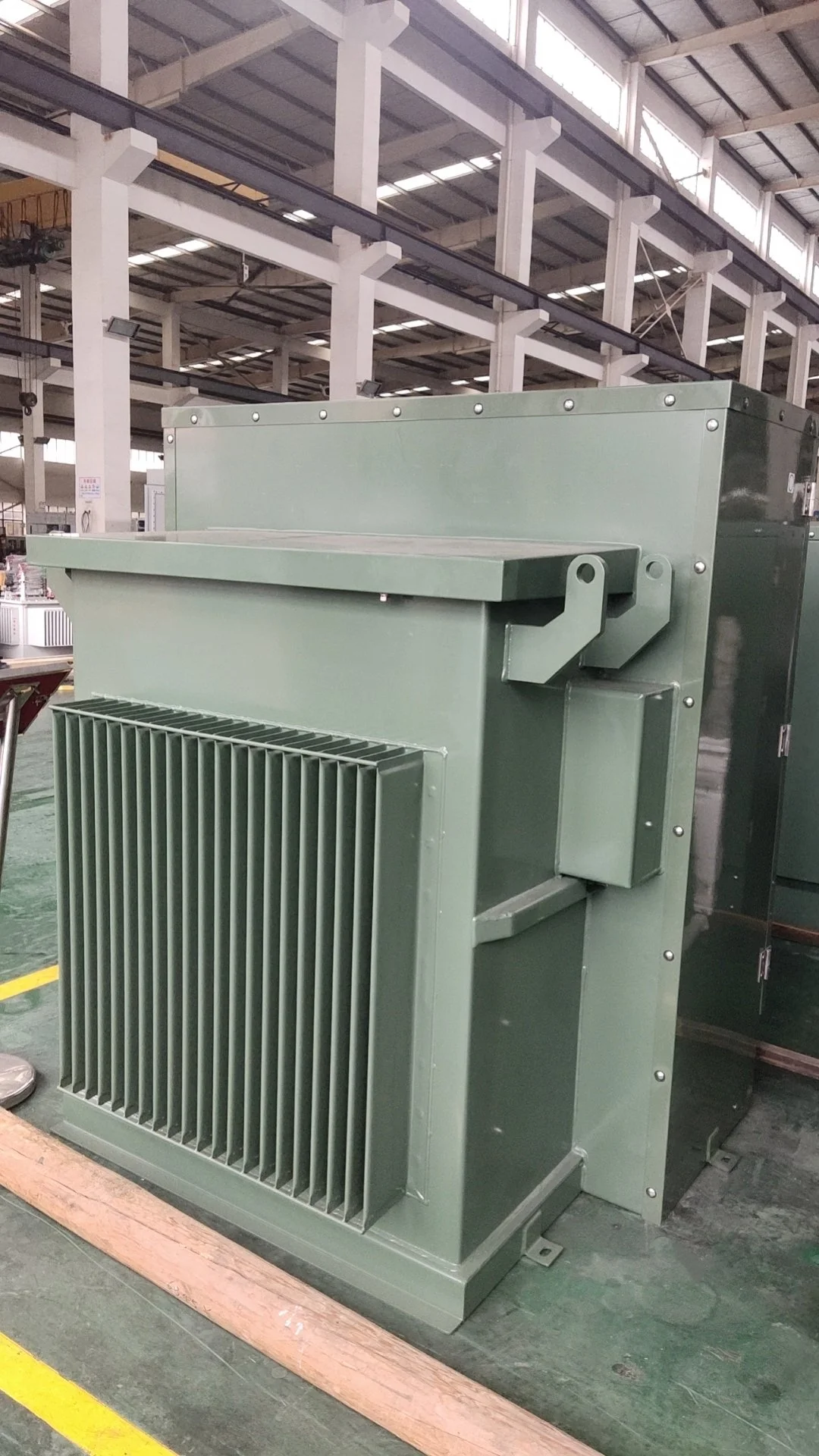

A large industrial cooling or electrical transformer with a radiator grille on the front, situated in a factory or warehouse with visible structural beams and windows overhead.

Three Phases Pad Mounted Transformer ,UL Listed

Ratings: 45kVA up to 5000kVA

Frequency: 50Hz or 60Hz

Primary voltage: up to 35kV

Secondary voltage: 208Y/120 V to 24,940 V

Standard: ANSI or IEC Standard

Optional Core: Silicon steel core or Amorphous core

Connect type: radial or loop type

Windings:Aluminum or Copper

Oil: FR3 or Mineral oil

The parameter above is typical design data for  reference. Custom design is available.
