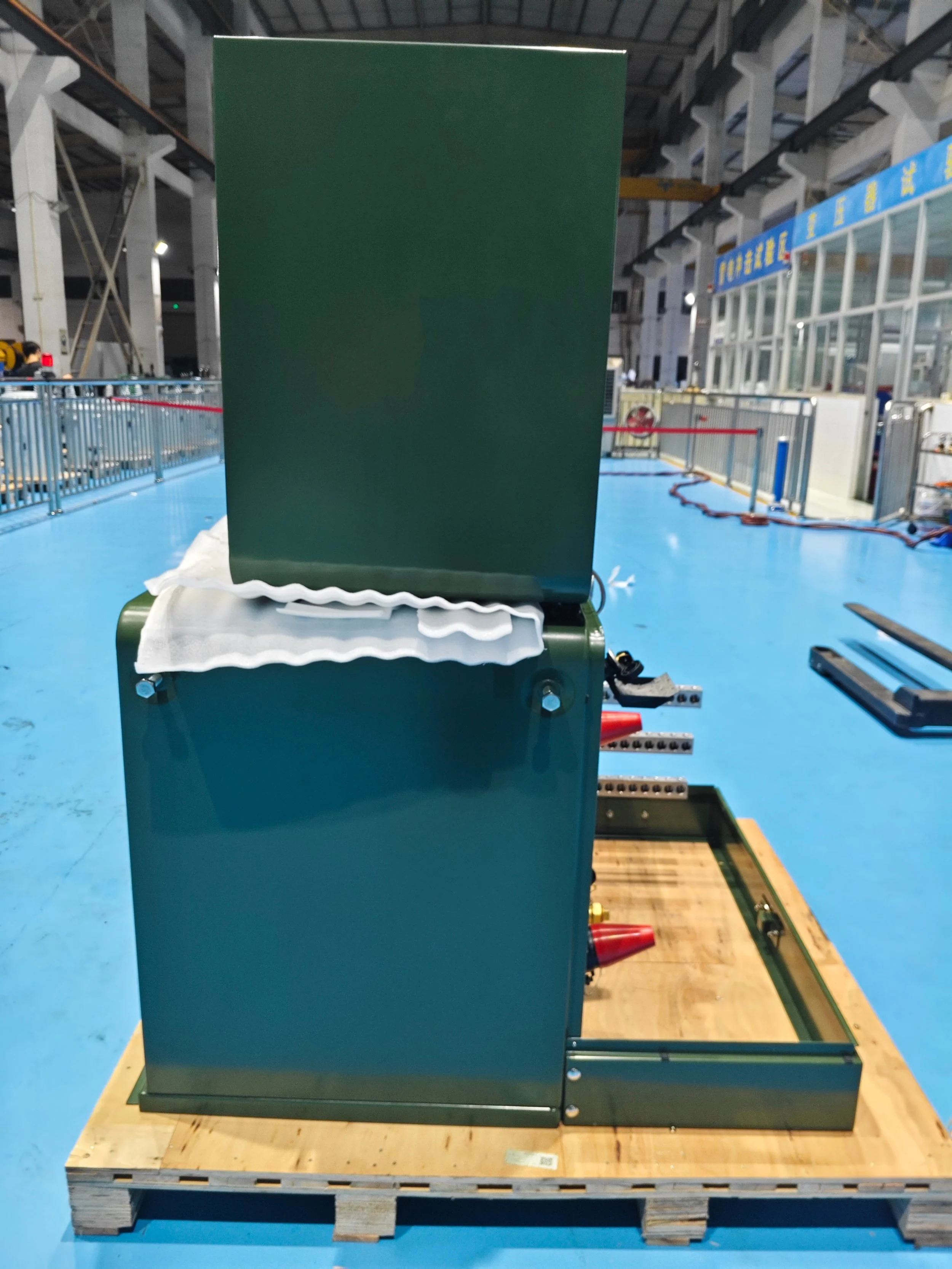

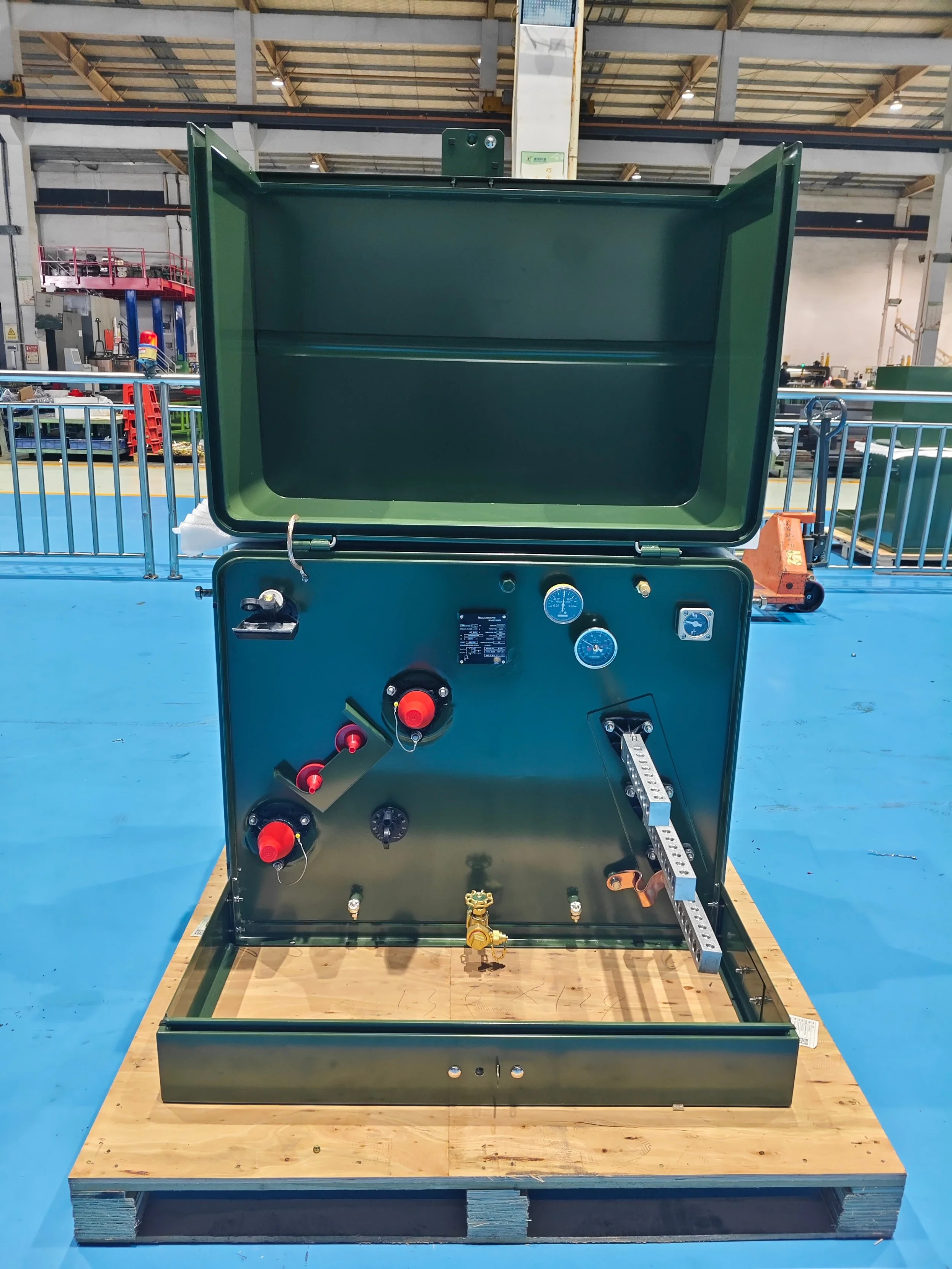

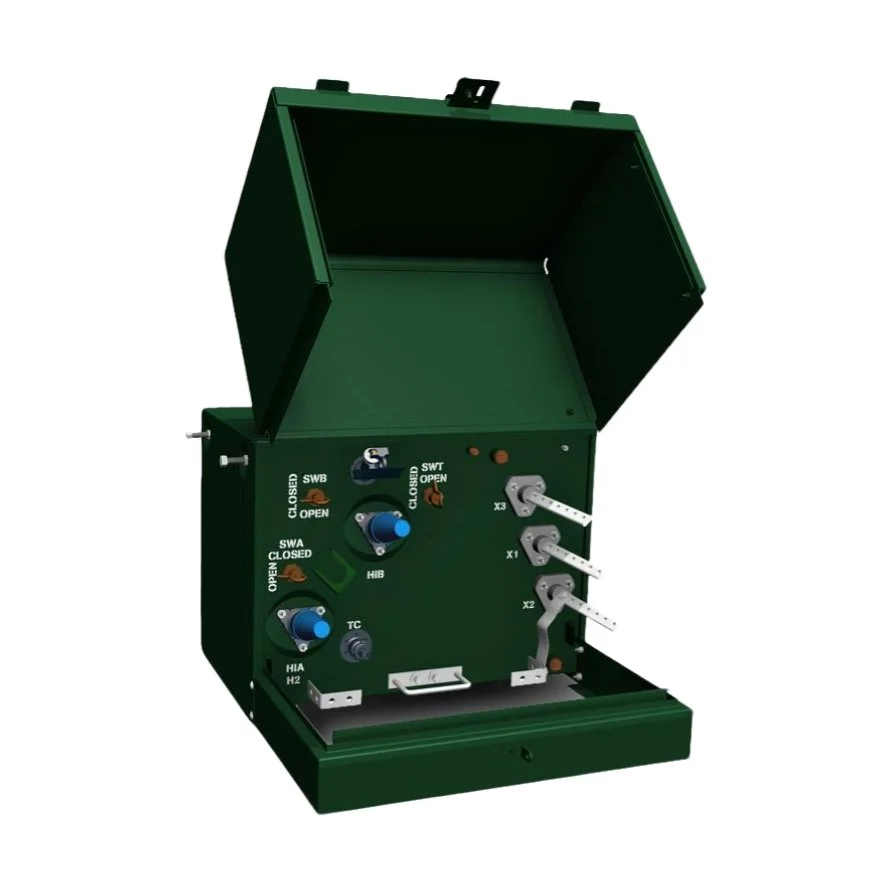

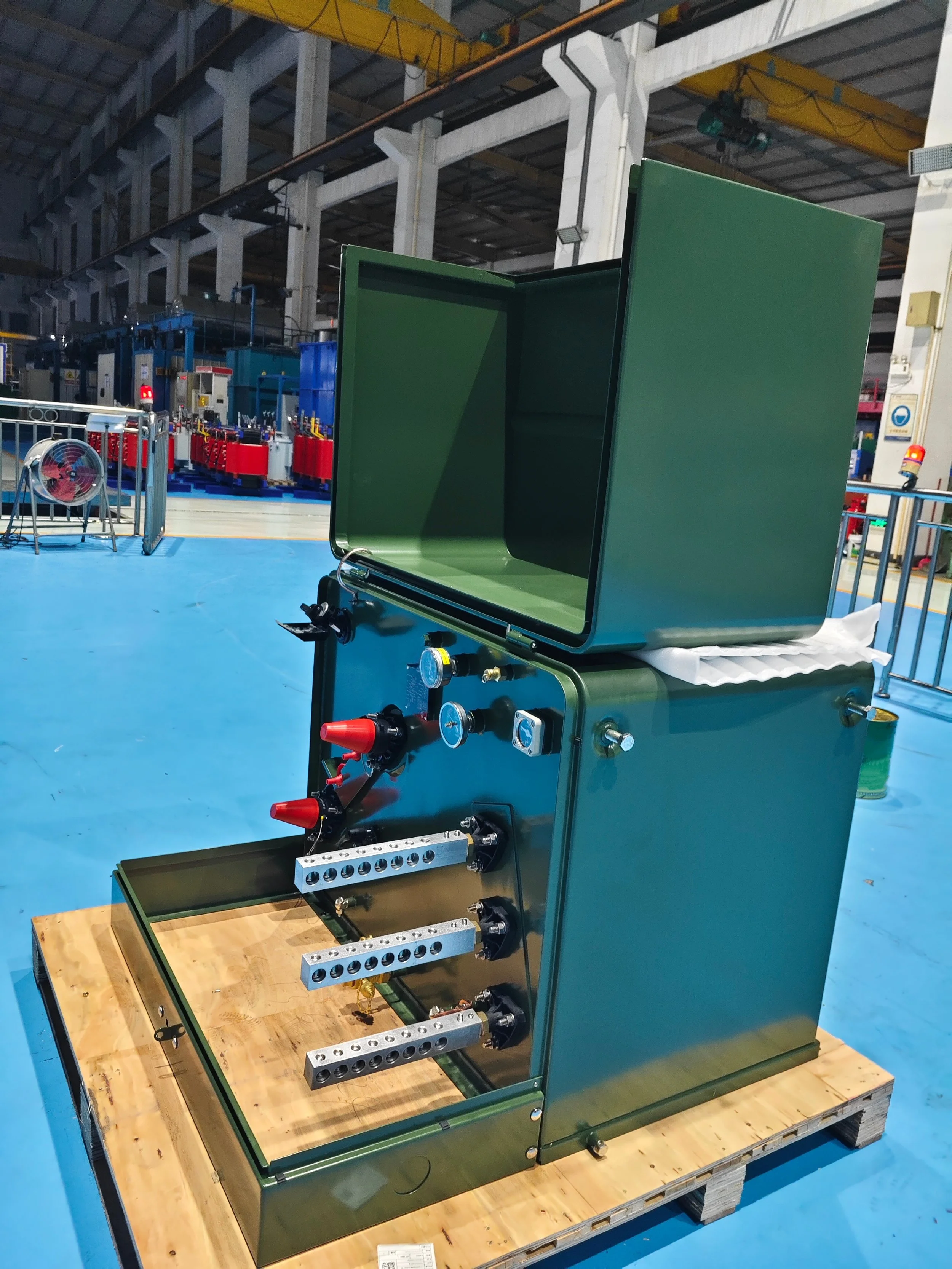

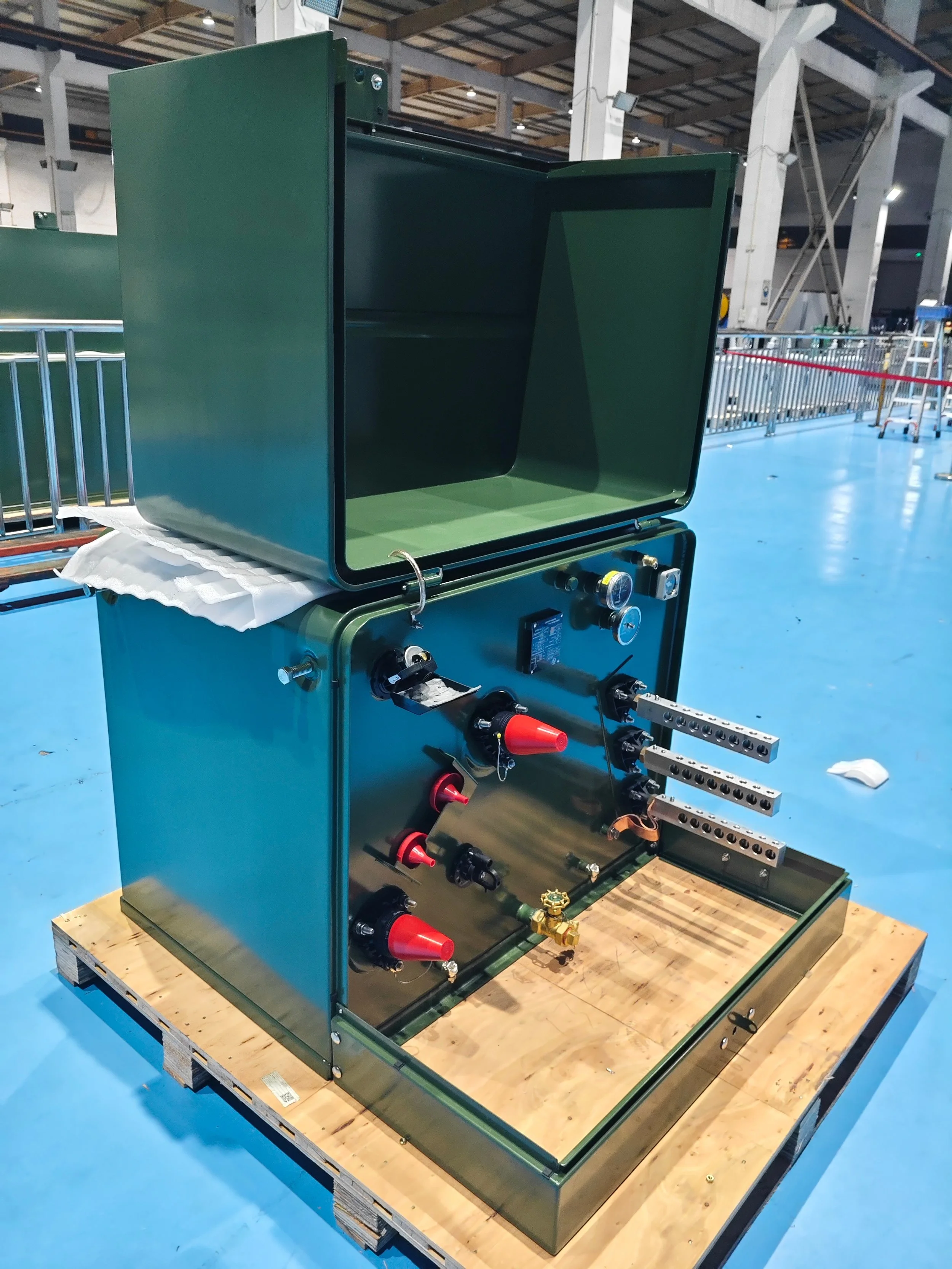

Single Phase Pad-Mounted Transformer

Ratings: 5kVA up to 250kVA

Frequency: 50Hz or 60Hz

Primary voltage: up to 19.9kV

Secondary voltage: 120-600 V.

Standard: ANSI/IEEE, NEMA, DOE etc.

Optional Core: Silicon steel core or Amorphous core

Windings:Aluminum or Copper

Oil: FR3 or Mineral oil

The parameter above is typical design data for  reference. Custom design is available.
