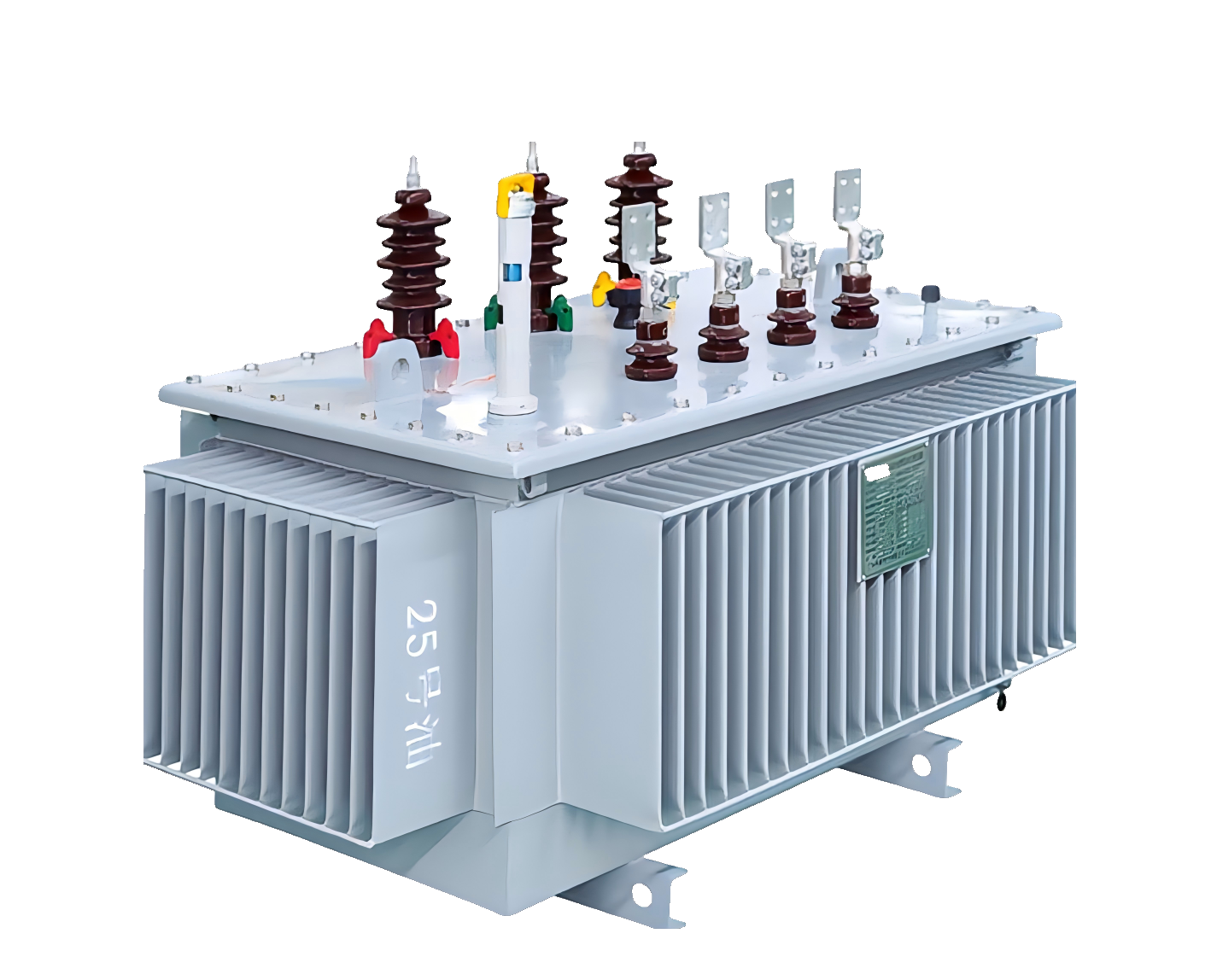

Three Phase Oil Immersed Transformer

Ratings: from 15kVA up to 10MVA

Frequency: 50Hz or 60Hz

Primary voltage: 6kV 10kV 20kV up to 35kV

Secondary voltage: up to 600V

Standard: IEC 60076 or GB/T 1094 or other

Optional Core: Silicon steel core or Amorphous core

Insultation class: A class

Windings:Aluminum or Copper

Oil: FR3 or Mineral oil

Losses: as customer requirement

The parameter above is typical design data for  reference. Custom design is available.
